Replacement PTC Control Modes

The following parts are suitable for SmokeShield and VentShield PTC dampers (manufactured after May 1999).

Replacement PTC™ Modes complete with Snaplock™ interface – Select the correct Mode to match those as originally supplied.

This list covers the more commonly used control Modes. For Modes not listed or for reverse mounted control modes please contact us.

Contact us for further details of the Centaur Retrofit kit which will enable dampers manufactured before 1999 to be used with the current range of spare parts and control modes.


Screen Shot 2017-04-05 at 15.10.56.png

Manual Control, Mode 1

PTC Mode 1 (SmokeShield)
XNNN00447
£162.45



Electrical Control Modes - Mode 5 (24v)

Mode 5 PTC with 72oC ETR (SmokeShield)
XNNN00015
£276.02

Mode 5 PTC (NON-ETR) (SmokeShield)
XNNN00017
£276.02

Mode 5 PTC VENT (NON-ETR) (VentShield)
XNNN00021
£276.02

Mode 5-2P PTC Motor/Motor (SmokeShield + VentShield)
XNNN00296
£276.02

Mode 5-3P PTC with 72oC ETR (0-10V Control) (SmokeShield)
XNNN00289
£361.45

Mode 5-3P PTC (NON-ETR) (0-10V Control) (SmokeShield)
XNNN00291
£361.45



Electrical Control Modes Mode 6 (230v)

Mode 6 PTC with 72oC ETR (SmokeShield)
XNNN00016
£289.15

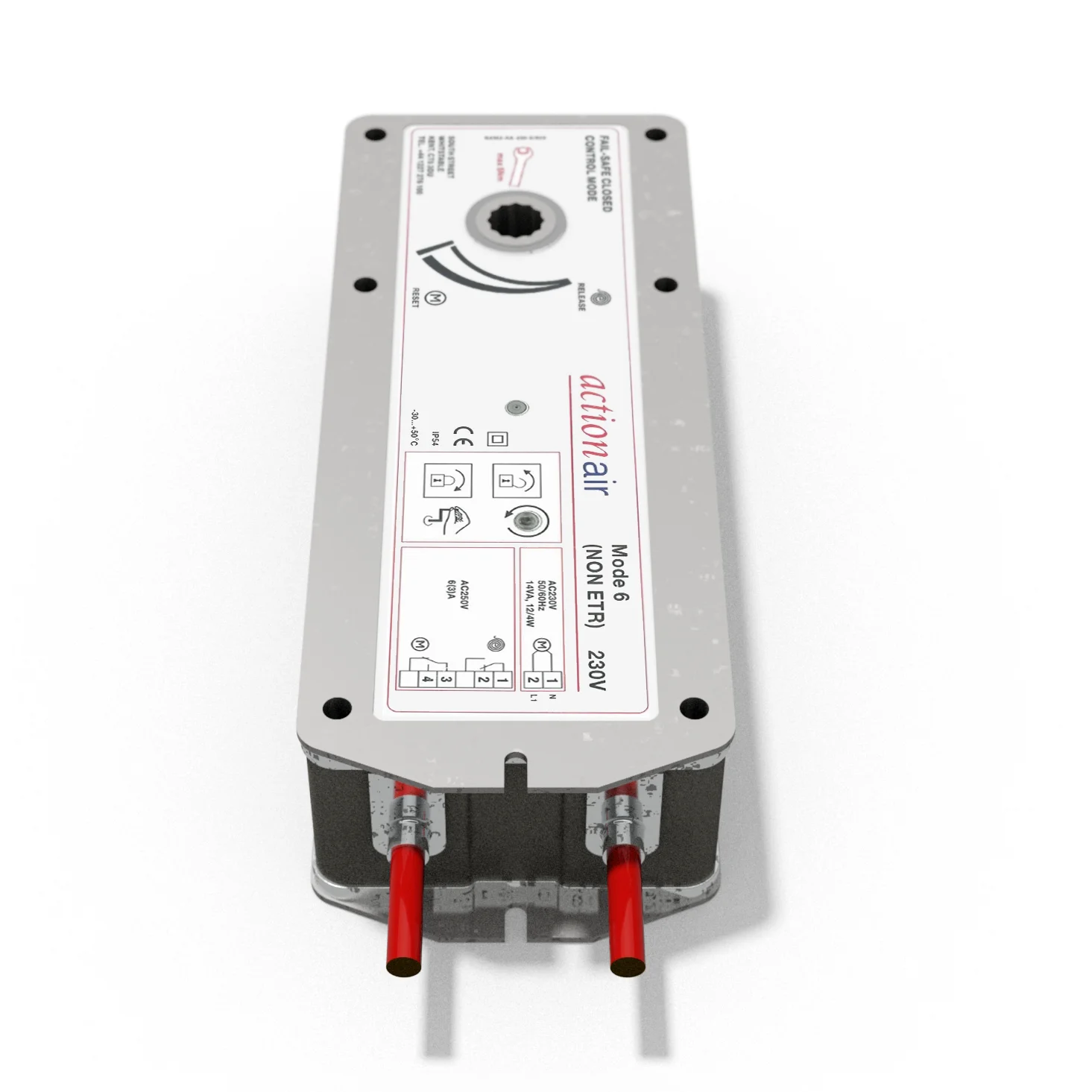

Mode 6 PTC (NON-ETR) (SmokeShield)
XNNN00018
£289.15

Mode 6 PTC VENT (NON ETR) (VentShield)
XNNN00022
£289.15

Mode 6-2P PTC Motor/Motor (SmokeShield)
XNNN00297
£312.31


To purchase spare parts for our dampers listed on this page please contact us.

VAT
All prices are subject to V.A.T., which will be charged in addition at the current rate.

Carriage Charge
9% Of the Nett Invoice Total (or a minimum of £7.00)
