We have responded to growing demand from building owners, facilities managers and emergency services for more flexible operation and testing of fire and smoke dampers by significantly upgrading its controls packages.
We have updated our widely used Actionpac system and are working directly with consulting engineers and contractors to provide specific fire and smoke control design expertise.
In the event of a fire, the dampers should close immediately to prevent the spread of fire and smoke through the ducting or open when needed to enable smoke extraction. The way they are controlled plays a vital role in keeping escape routes open and allowing access for fire-fighters.
Actionair’s fifth generation system, the Actionpac LNS5 intelligent addressable life safety damper system, is a flexible and sophisticated package designed specifically for the control of smoke and fire dampers. Unlike most fire alarm systems, a dedicated panel is able to monitor damper end switches and does not make the assumption that, simply because power has been removed, the dampers have reached a fail-safe position.
The system has been updated to add a number of important new features to its widely used predecessor Actionpac LNS4, which already provided the ability to manage multiple dampers from a single simple interface without the need for additional hardware. We believe this is critical for the safety of buildings and can also provide lifetime cost savings for building owners.
LNS5 employs a solid-state embedded computer for reliability and is simple to use and install. It is based around a two-core network cable that communicates with the local interfaces at each damper. This significantly reduces wiring costs compared to more conventional hard-wired solutions.
Heat and smoke detectors can be fitted directly into the damper interface, either to control the damper to which it is fitted or other dampers within the system. It can also be linked to a local test switch enabling dampers to be conveniently and easily tested remotely or via the test function available at the panel. The system can also be scheduled to automatically test dampers on a regular basis and provides remote access for checking and maintenance.
The LNS5 is designed to work on interoperable open protocol platforms and can also be linked to the building management system (BMS) via RS485 or BACnet. This open system approach provides considerable lifecycle benefits to the end client for ongoing operation and maintenance.

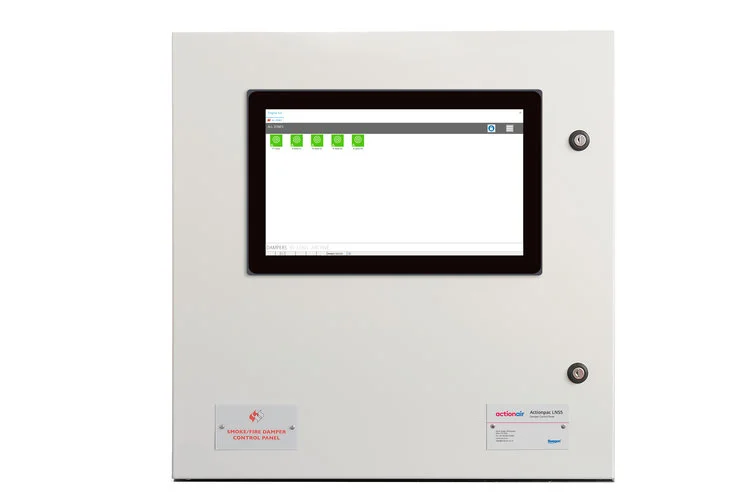

The control system consists of a 15-inch embedded panel computer, UPS and pre-loaded software, which is extremely user friendly. The server architecture reduces commissioning time, simplifies operation and allows scope for future changes to the building and its HVAC systems.
It also provides full diagnostics for system and device integration.
In many cases the fire alarm system is used to control dampers, but this strategy does not offer the flexible and sophisticated operation that is built into the Actionpac system. More basic approaches simply shut every damper in the building in the event of a fire whereas the LNS5 offers control of each individual damper. This allows system designers to provide users with a more strategic and targeted approach for fire compartmentalisation, pressurisation and smoke extraction.
